266 nm UV laser
Q-switched and modelocked, diode pumped solid state laser (DPSS) and fiber laser at 266 nm wavelength
Passively
Q-switched UV laser at 266 nm
MPL-F-266
All solid state 266 nm UV laser is made features of ultra compact, long lifetime, cost -effectiveness and easy operating, which is widely used in UV curing, micro-electronics, CD carving, laser medical treatment, scientific experiment, etc.
Wavelength: 266 ± 1nm
Operation mode: pulsed
Mode: ~ TEM00 (Walk-off)
M²: < 2
Output power: 1~10 mW
Power stability: < 5%, < 10% (rms, 4 hours)
Pulse duration: ~ 4 ns
Pulse energy: 0.1 ~ 3 µJ
Peak power: 250 ~ 750 W
Repitition rate: 1 - 4 kHz; QCW 5 - 7 kHz*
Beam shape: elliptical (~0.5x2 mm²)
Polarization ratio: > 50:1
Beam height: 45 mm
Operating temperature: 10 ~ 35 °C
Warm-up time: < 5 min
Power supply: AC 90 - 264 V
Warranty: 1 year
*Setting up one fixed rep. rate internal or by external triggering between 1 kHz - 4 kHz with stable pulse energy, pulse duration and pulse period.
QCW state with one rep. rate between 5 kHz - 7 kHz.
MPL-N-266
All solid state 266 nm UV laser is made features of ultra compact, long lifetime, cost-effectiveness and easy operating, which is widely used in UV curing, micro-electronics, CD carving, laser medical treatment, scientific experiment, etc.
Wavelength: 266 ± 1nm
Operation mode: pulsed
Mode: ~ TEM00
Output power:
a) 1 ~ 30 mW | b) 20 ~ 30 mW | c) 30 ~ 120 mW
Pulse width:
a) ~ 1.3 ns | b) ~ 5 ns | c) ~ 6 ns
Pulse energy:
a) 0.1 ~ 3 µJ | b) 2 ~ 3 µJ | c) ~ 10 µJ
Pulse peak power:
a) 80 ~ 2300 W | b) 400 ~ 600 W | c) ~ 1700 W
Power stability: < 5%, < 10% (rms, 4 hours)
Repitition rate: 3 - 5 kHz; QCW 10 - 15 kHz*
Beam shape: elliptical (~0.5x2 mm²)
Beam height: 70 mm
Operating temperature: 10 ~ 35 °C
Cooling method: Air
Warm-up time: < 10 min
Power supply: AC 220V
Expected lifetime: 5000 hours
Warranty: 1 year
*Setting up one fixed rep. rate internal or by external triggering between 3 kHz - 5 kHz with stable pulse energy, pulse duration and pulse period.
QCW state with one rep. rate between 10 kHz - 15 kHz.
MPL-W-266
All solid state 266nm UV laser is made features of ultra compact, long lifetime, and easy operating, which is widely used in UV curing, micro-electronics, CD carving, laser medical treatment, scientific experiment, etc.
Wavelength: 266 ± 1nm
Operation mode: pulsed
Mode: ~ TEM00
Output power: 50 ~ 600 mW
Power stability: < 3%, < 5%
Pulse duration: ~ 5 ns
Pulse energy: 5 ~ 30 µJ
Peak power: 1 ~ 6 kW
Repitition rate: 1 - 4 kHz; QCW 10 - 20 kHz*
Beam divergence: < 2.0 mrad (full angle)
Beam diameter: 2.0 mm (1/e²)
Beam height: 93.5 mm
Operating temperature: 10 ~ 35 °C
Warm-up time: < 10 min
Power supply: AC 220V
Expected lifetime: 8000 hours
Warranty: 1 year
*Setting up one fixed rep. rate internal or by external triggering between 1 kHz - 4 kHz with stable pulse energy, pulse duration and pulse period.
QCW state with one rep. rate between 10 kHz - 20 kHz.
Actively
Q-switched UV
laser at 266 nm
AO-S-266
All solid state acousto-optic Q-switched laser at 266 nm has the features of high peak power, high repetition rate, and short pulse duration, which is widely used in material processing, measure, scientific research and so on.
Wavelength: 266 ± 1nm
Operation mode: acousto-optics Q-switched
Mode: ~ TEM00
M²: < 2
Output power: 1~10 mW
Power stability: < 3%, < 5%, < 10% (rms, 4 hours)
Pulse duration: ~ 7 ns*
Pulse energy: 1 ~ 5 µJ
Repitition rate: 0.1 - 5 kHz
Spectral purity: > 99%.
Beam shape: elliptical (~1.5 x 0.4 mm²)
Beam height: 30 mm
Operating temperature: 10 ~ 35 °C
Warm-up time: < 10 min
Power supply: AC 220V
Expected lifetime: 5000 hours
Warranty: 1 year
* Varies from power and repetition rate.
AO-W-266
All solid state AOM Q-switched laser at 266 nm has the features of high peak power, high repetition rate, and short pulse duration, which is widely used inmarking, carving, measure, research and so on.
Wavelength: 266 ± 1nm
Operation mode: acousto-optics Q-switched
Output power: 1~200 mW
Power stability: < 3%, < 5%
Pulse duration: 10 ~ 15 ns*
Pulse peak power: 0.5 ~ 2 W
Pulse energy: 1 ~ 20 µJ
Repitition rate: 0.1 - 50 kHz
Beam divergence: < 3,5 mrad (full angle)
Beam diameter: 2.0 mm (1/e²)
Beam height: 93.5 mm
Cooling method: air
Operating temperature: 15 ~ 35 °C
Warm-up time: < 10 min
Power supply: AC 220V
Expected lifetime: 5000 hours
Warranty: 1 year
* Varies from power and repetition rate.

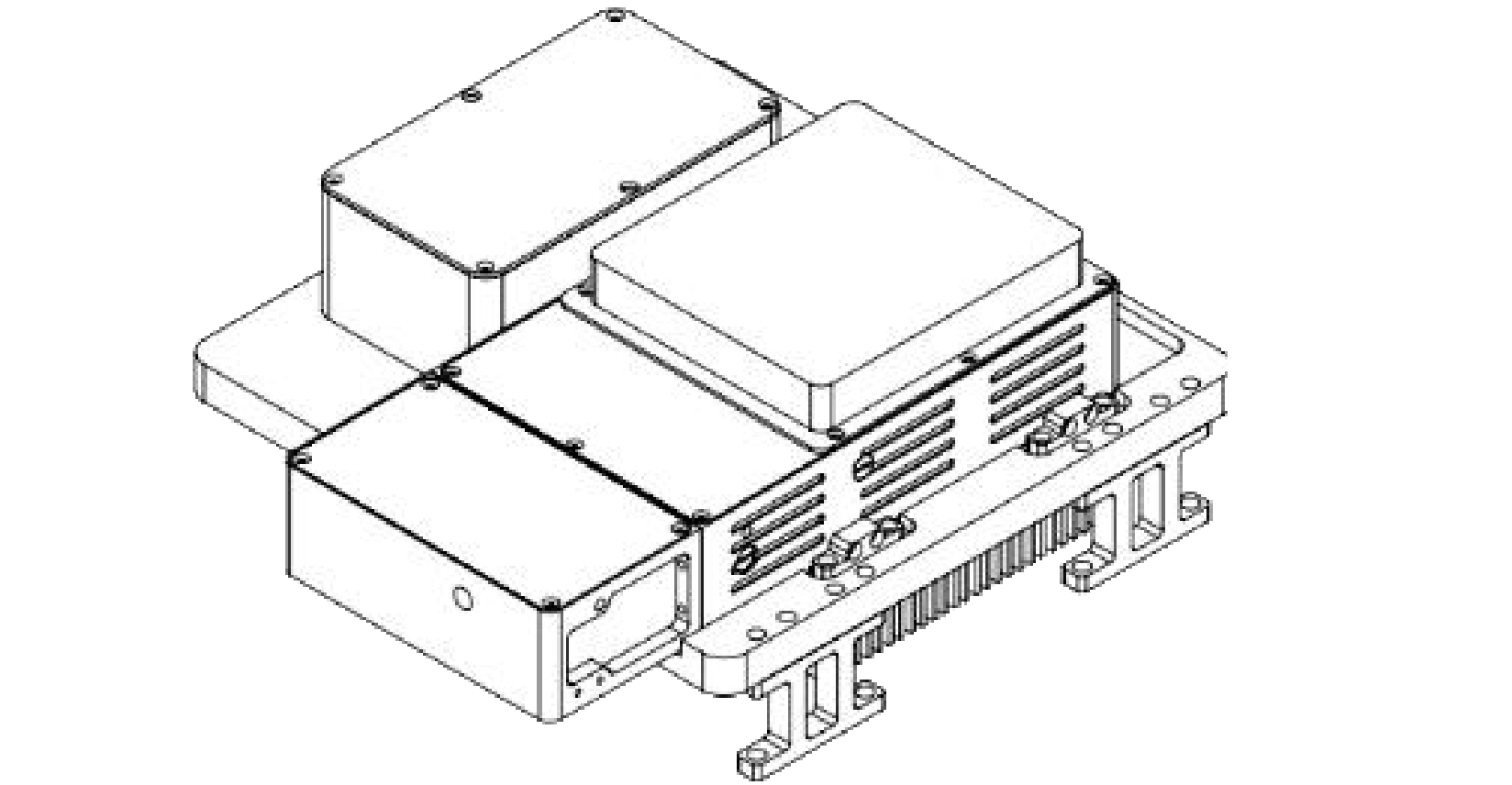

EO-266-G
High energy diode pumped all solid state Q-switched laser at 266 nm has the features of high single pulse energy, short pulse duration, and high peak power, which is widely used in scientific research, biology, instrumentation, 3D marking, laser marking, sub-surface engraving and so on.
Wavelength: 266 ± 1nm
Operation mode: electro-optics Q-switched
Power stability: < 2%, < 3%
Pulse energy*:
a) 100 µJ @ 1 kHz | b) 100 µJ @ 5 kHz | c) 4 µJ @ 25 kHz
Pulse duration:
a) < 9 ns @ 1 kHz | b) 9 ns @ 5 kHz | c) < 13 ns @ 25 kHz
Repetition rate*:
a) 1 Hz ~ 1 kHz | b) 1 kHz ~ 7 kHz | c) 1 kHz ~ 25 kHz
Ponting stability: < 20 µrad/hour
Beam divergence: < 3 mrad (full angle)
Beam diameter: 1.0 mm (1/e²)
Beam height: 80 mm
Cooling method: air
Operating temperature: 15 ~ 30 °C
Warm-up time: < 15 min
Power supply: AC 220V
Expected lifetime: 10000 hours
Warranty: 1 year
*Options: Higher energy can be customized; higher frequency can be customized

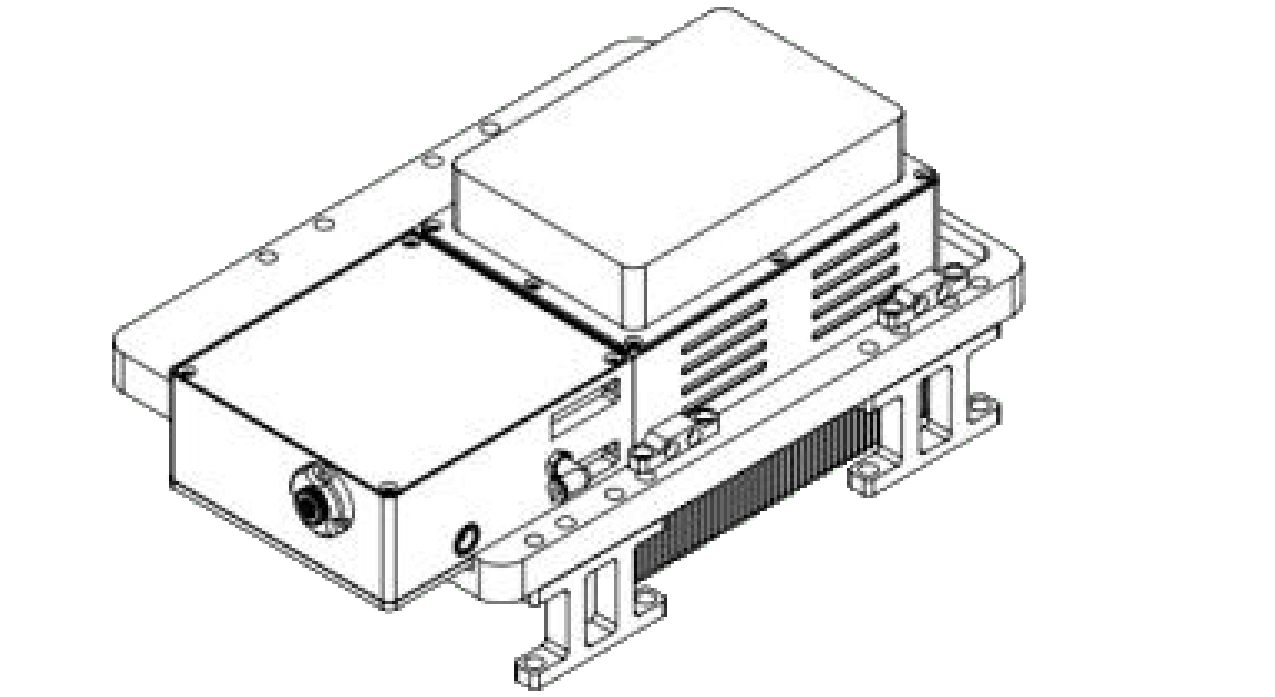

EO-266-N
High energy diode pumped all solid state Q-switched laser at 266 nm has the features of high single pulse energy, short pulse duration, and high peak power, which is widely used in scientific research, biology, instrumentation, 3D marking, laser marking, sub-surface engraving and so on.
Wavelength: 266 ± 1nm
Operation mode: electro-optics Q-switched
Power stability: < 2%, < 3%
Pulse energy*:
a) 100 µJ @ 1 kHz | b) 100 µJ @ 5 kHz
c) 4 µJ @ 25 kHz | d) 150 µJ @ 3 kHz
Pulse duration:
a) < 5 ns @ 1 kHz | b) 5 ns @ 5 kHz
c) < 13 ns @ 25 kHz | d) 10 ns @ 3 kHz
Repetition rate*:
a) 1 Hz ~ 1 kHz | b) 1 kHz ~ 7 kHz
c) 1 kHz ~ 25 kHz | d) 1 kHz ~ 3 kHz (fixed)
Ponting stability: < 20 µrad/hour
Beam divergence: < 3 mrad (full angle)
Beam diameter: 1.0 mm (1/e²)
Beam height: 80 mm
Cooling method: air
Operating temperature: 15 ~ 30 °C
Warm-up time: < 15 min
Power supply: AC 220V
Expected lifetime: 10000 hours
Warranty: 1 year
* Options: Higher energy can be customized; higher frequency can be customized
DPS-266-Q
High energy diode pumped all solid state Q-switched laser at 266 nm has the features of high single pulse energy, short pulse duration, and high peak power, which is widely used in LIBS, LIF, PIV, ICP-MS, LCD repair, scientific research, laser processing, military, and so on.
Wavelength: 266 ± 1nm
Operation mode: electro-optics Q-switched
Power stability: < 4%, < 5%, <10%
Pulse energy:
a) 2 mJ | b) 5 mJ
Beam diameter:
a) ~ 2 mm | b) ~ 2.5 mm
Pulse duration: < 10 ns
Repetition rate: 1 - 100 Hz (adjustable)
Beam divergence: < 3 mrad (full angle)
Beam height: 55 mm
Cooling method: water
Operating temperature: 15 ~ 30 °C
Warm-up time: < 15 min
Power supply: AC 220V
Expected lifetime: 10^9 pulses
Warranty: 1 year
Picosecond
pulsed UV laser at 266 nm

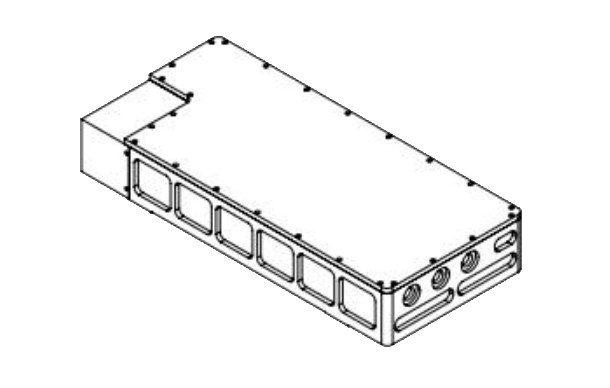

PS-R-266
Mode-locked picosecond pulsed laser at 266 nm is made features of short pulse duration, high repetition rate and good beam quality, which is used in laser medical treatment, industrial processing, etc.
Wavelength: 266 ± 1nm
Operation mode: Mode-locked
Mode: TEM00
Output power: > 1, 5, 10, ..., 50 mW
Power stability: < 3%, < 5% (rms, 4 hours)
Pulse duration: 10 ~ 20 ps
Repitition rate: 48 +/-1 MHz
Beam divergence: < 4 mrad (full angle)
Beam diameter: 3.0 mm (1/e²)
Beam height: 60 mm
Cooling method: water
Operating temperature: 15 ~ 30 °C
Warm-up time: < 10 min
Power supply: AC 220V
Expected lifetime: 10000 hours
Warranty: 1 year

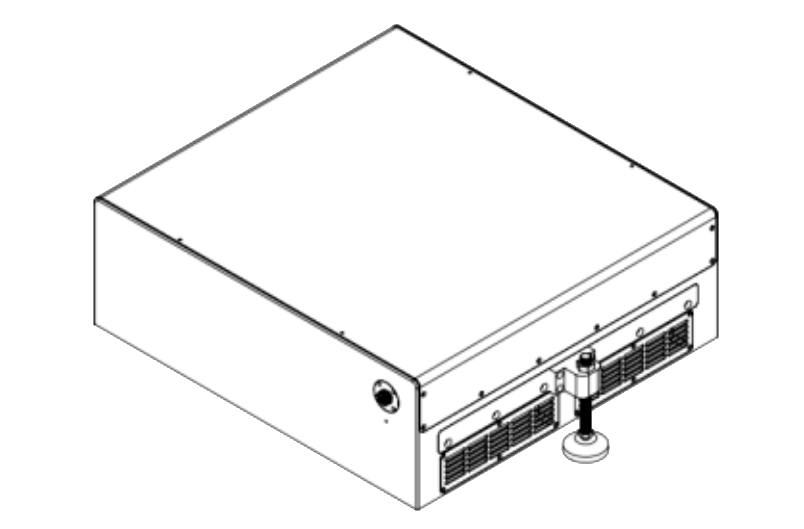

DPS-266-Pico
Diode pumped all solid state picosecond pulsed laser at 266 nm has the features of short pulse duration, high repetition rate and high average power, which is widely used inlaser medical treatment, industrial processing, scientific research, and so on.
Wavelength: 266 ± 1nm
Operation mode: pulsed
Output power: 200, 500 mW
Power stability: < 1%, < 3% (rms, 4 hours)
Pulse duration: < 50 ps
Repitition rate: 5 MHz
Beam divergence: < 3 mrad (full angle)
Beam diameter: 2 mm (1/e²)
Beam height: 128 mm
Cooling method: air
Operating temperature: 15 ~ 30 °C
Warm-up time: < 15 min
Power supply: AC 220V
Expected lifetime: 10000 hours
Warranty: 1 year
Fiber laser
266 nm
FL-266-PS
Mode-locked all fiber pulsed laser at 266 nm with SESAM technique is made features of high output power stability, good beam profile, ultra compact, long lifetime, cost-effectiveness and easy operating, which is widely used in scientific research, laser processing, and so on.
Wavelength: 266 ± 1nm
Operation mode: mode-locked
M²: < 2
Output power: 5 mW, 10 mW
Power stability: < 3%, < 5% (rms, 4 hours)
Pulse duration: ~ 10 ps
Repitition rate: 20 - 50 +/- 1 MHz (fixed)
Polarization ration: > 15 dB
Beam height: 30 mm
Fiber length: variable
Operating temperature: 15 ~ 35 °C
Warm-up time: < 15 min
Power supply: AC 220V / DC 5V
Expected lifetime: 10000 hours
Warranty: 1 year
DPS-266-Pico
Picosecond all fiber pulsed laser at 266nm is made features of high output power stability, good beam profile, ultra compact, long lifetime, cost-effectiveness and easy operating, which is widely used in scientific research, laser processing, and so on.
Wavelength: 266 ± 1nm
Operation mode: pulsed
M²: < 2
Output power: 10 mW, 50 mW
Power stability: < 3% (rms, 4 hours)
Pulse duration: 50 ~ 900 ps (fixed)
Repitition rate: 0.1 - 20 MHz (fixed)
Polarization ration: > 15 dB
Beam height: 30 mm
Fiber length: variable
Operating temperature: 15 ~ 35 °C
Warm-up time: < 15 min
Power supply: AC 220V / DC 12V
Expected lifetime: 10000 hours
Warranty: 1 year
Options:
(1) < 50 ps pulse duration
(2) Variable repetition rate 0,1 - 20 MHz or 1 Hz ~ 1 kHz
(3) RS 232 interface
(4) > 50 mW output power
FL-266-Nano
High frequency all fiber pulsed laser at 266nm is made features of high output power stability, good beam profile, ultra compact, long lifetime, low cost and easy operating, which is widely used in scientific research, laser processing, and so on.
Wavelength: 266 ± 1nm
Operation mode: pulsed
M²: < 2
Output power: 25 mW, 50 mW
Power stability: < 4%, < 5% (rms, 4 hours)
Pulse duration: 0.5 ~ 50 ns (fixed)
Repitition rate: 0.1 - 1 MHz (fixed)
Polarization ration: > 15 dB
Beam height: 30 mm
Fiber length: variable
Operating temperature: 15 ~ 35 °C
Warm-up time: < 15 min
Power supply: AC 220V / DC 12V
Expected lifetime: 10000 hours
Warranty: 1 year
Options:
(1) Variable pulse duration 0.5 ~ 5 ns or 5 ~ 50 ns
(2) Variable repetition rate 0,1 - 1 MHz
(3) RS 232 interface
(4) > 50 mW output power
