410 nm
410 nm diode laser
MDL-C-410 / MDL-E-410
Long coherent length / narrow line width
Diode laser at 410 nm. It features a narrow spectral linewidth, long coherent length, stable wavelength, long lifetime and easy operation. It is widely used in holography, interference, fluorescence, photoetching, flow cytometry, DNA sequencing, Raman spectroscopy, LIDAR, precision measurement, etc.
Wavelength: 410 ± 1 nm
Operating mode: CW
Output power: 1, 10, ..., 50 mW
Power stability: < 1%, < 2%, < 3%
(rms, 4 hours)
Mode: ~ TEM00
Coherent length*: > 1 m
Spectral line width**: < 0.06 nm (< 0.03 nm)
Beam diameter: ~ 1.3 mm (1/e²)
Beam divergence: < 1.5 mrad (full angle)
Polarization ratio: > 50:1 (> 100:1 optional)
(horizontal or vertical, +/- 5°)
Beam height: 30 mm
Operating temperature: 20 ~ 30 °C
Warm-up time: < 5 min
Power supply: AC 100 ~ 240 V
Expected lifetime: 10.000 hours
Warranty: 1 Year
Operating mode: CW
Output power: 1, 10, ..., 50 mW
Power stability: < 1%, < 2%, < 3%
(rms, 4 hours)
Mode: ~ TEM00
Coherent length*: > 1 m
Spectral line width**: < 0.06 nm (< 0.03 nm)
Beam diameter: ~ 1.3 mm (1/e²)
Beam divergence: < 1.5 mrad (full angle)
Polarization ratio: > 50:1 (> 100:1 optional)
(horizontal or vertical, +/- 5°)
Beam height: 30 mm
Operating temperature: 20 ~ 30 °C
Warm-up time: < 5 min
Power supply: AC 100 ~ 240 V
Expected lifetime: 10.000 hours
Warranty: 1 Year
* Model MDL-C-410 only
** Model MDL-E-410 only
** Model MDL-E-410 only

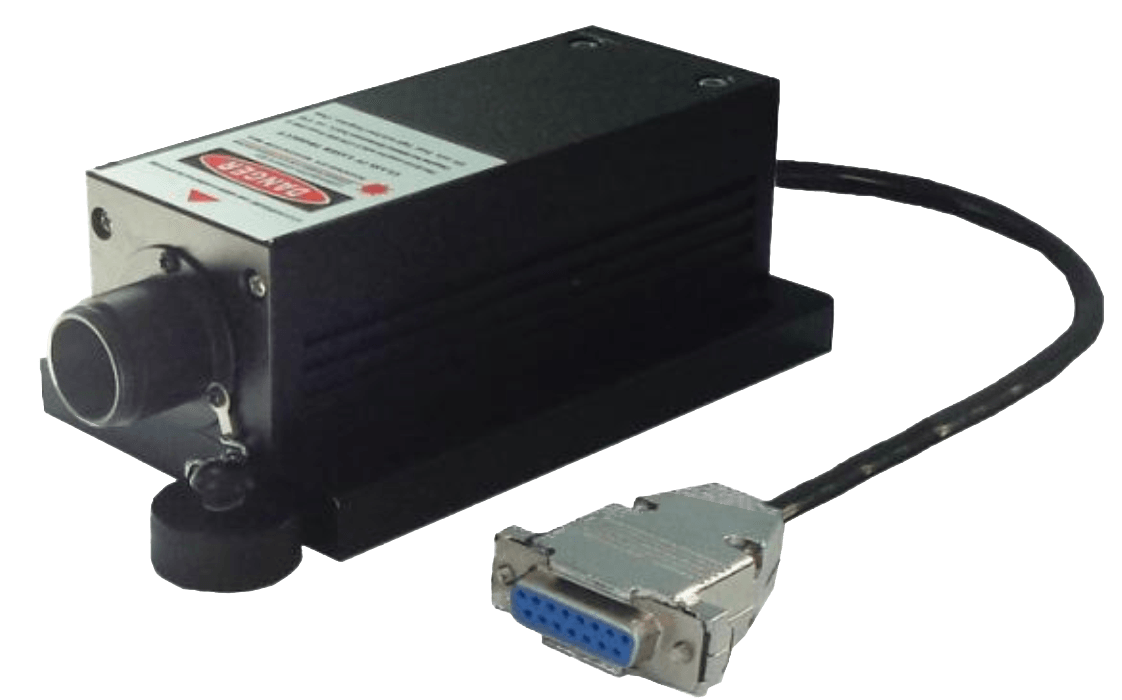

410 nm diode laser
MDL-III-410 / MLL-III-410
Low noise CW diode laser
410 nm violet diode laser. It features low noise, power stability, ultra compact design, long lifetime, cost-effectiveness and easy operation. The laser is used in measurement, communication, spectrum analysis, etc.
Wavelength: 410 ± 5 nm
Operating mode: CW
Output power: >1, 10, ..., 350 mW
Power stability: < 1%, < 2%, < 3%, (< 0.5%)
(rms, 4 hours)
Mode: multimode
Noise of amplitude*: < 1% (rms, 10Hz~20MHz)
Beam diameter: ~ 3.5 x 1.0 mm² (1/e²)
Beam divergence: < 0.5 x 2.0 mrad
Operating mode: CW
Output power: >1, 10, ..., 350 mW
Power stability: < 1%, < 2%, < 3%, (< 0.5%)
(rms, 4 hours)
Mode: multimode
Noise of amplitude*: < 1% (rms, 10Hz~20MHz)
Beam diameter: ~ 3.5 x 1.0 mm² (1/e²)
Beam divergence: < 0.5 x 2.0 mrad
(full angle)
Beam height: 24.8 mm
Operating temperature: 10 ~ 35 °C
Warm-up time: < 5 min
Power supply: AC 85 ~ 264 V
Modulation: 1 Hz - 30 kHz
Beam height: 24.8 mm
Operating temperature: 10 ~ 35 °C
Warm-up time: < 5 min
Power supply: AC 85 ~ 264 V
Modulation: 1 Hz - 30 kHz
30 kHz - 100 kHz
(TTL or analog)
Expected lifetime: 10.000 hours
Warranty: 1 Year
* Model MLL-III-410 only
Expected lifetime: 10.000 hours
Warranty: 1 Year
* Model MLL-III-410 only
Tunable CW laser
at 408-412 nm
TUN-408~412 | Diode laser with narrow line width
This laser
is a high-end custom high stability, low noise, narrow linewidth, wavelength tunable product. Mainly used in scientific research and teaching, such as holographic imaging, Raman, atomic clock, coherent detection and so on. Currently it has a line width of less than 0.1nm and a tuning range of 4nm.
Wavelength: 408 - 412 nm
Operating mode: CW
Output power: 1, 10, ..., 30 mW
Power stability: < 1%, < 2%, < 3%
(rms, 4 hours)
Mode: ~ TEM00
Spectral line width: < 0.1 nm
Beam diameter: ~ 3.0 mm (1/e²)
Beam divergence: < 1.0 mrad (full angle)
Polarization ratio: > 50:1, > 100:1 (± 5°)
(horizontal or vertical)
Beam height: 45.5 mm
Operating temperature: 20 ~ 30 °C
Warm-up time: < 5 min
Expected lifetime: 10.000 hours
Warranty: 1 Year
Output power: 1, 10, ..., 30 mW
Power stability: < 1%, < 2%, < 3%
(rms, 4 hours)
Mode: ~ TEM00
Spectral line width: < 0.1 nm
Beam diameter: ~ 3.0 mm (1/e²)
Beam divergence: < 1.0 mrad (full angle)
Polarization ratio: > 50:1, > 100:1 (± 5°)
(horizontal or vertical)
Beam height: 45.5 mm
Operating temperature: 20 ~ 30 °C
Warm-up time: < 5 min
Expected lifetime: 10.000 hours
Warranty: 1 Year
Fiber coupler for
410 nm laser module
MDL-410(FC)
| > 250 mW
Nearly all 410 nm laser modules can be coupled with MM or SM fibers with different co re diameters. Here
you will find all possible fiber couplings and parameters.
Fiber coupled violet
laser system at 410 nm
FC-410 | > 10 W
The FC series
(Fiber Coupling Laser System) includes laser diode, laser resonator, fiber coupling optics, laser power supply, LD current and crystal temperature control in ONE package. Thanks to its compact dimensions and convenient functions, such as power setting, temperature control, LCD/LED display, etc., it is very well suited for pumping, scientific research, industrial and medical applications.
