DYE-SF-077
Dey laser single frequency tunable ring resonator CW

DYE-SF-077

Tunable stabilized single frequency
dye laser

Wavelength                 520-700 nm
Output power              > 1.5 W (10 W pump power)
Scanning range          6 / 20 / 40 GHz
Linewidth                     < 100 KHz / s
Frequency stability     < 40 MHz/h. (< 4 MHz/h)
Frequency-stabilized CW single-frequency ring Dye laser, model DYE-SF-077, is a further development of model DYE-SF-07. It now includes a system of frequency stabilisation on the basis of a thermo-stabilised interferometer and a fast electronic driver.

Laser DYE-SF-077 features exceptionally narrow generation line width, which amounts to less than 100 kHz/s. DYE-SF-077 sets new standard for generation line width of commercial lasers. Prior to this model, the narrowest line-width of commercial dye lasers was as broad as 500 kHz - 1 MHz.

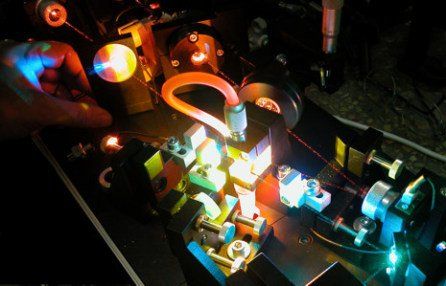

dye laser in operation construction pumped with 532 nm
It is necessary to note that the 100-kHz line-width is achieved in DYE-SF-077 without the use of an acousto-optical modulator, which, as a rule, complicates the design and introduces additional losses. For efficient suppression of radiation frequency fluctuations of laser DYE-SF-077 in a broad frequency range a specially designed ultra-fast PZT is used.

The DYE-SF-077 laser cavity has horizontal orientation, the optical mounts of the cavity elements are attached to a rigid base plate, which is further stabilised by a volumetric framework with three invar rods underneath. Additional passive stability of the position of cavity elements is provided by the vibration isolating design of the laser base.

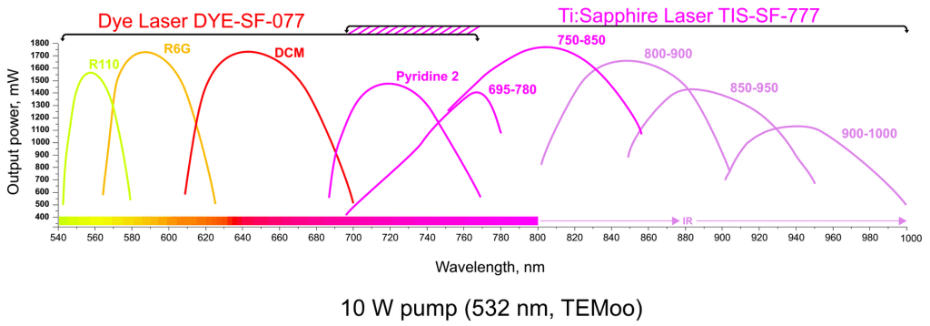

Tunability wavelength output power dye laser titan:sapphire, rhodamin R110 R6G DCM Pyridine
FEATURES

Rigid laser base-plate

Rigid laser base-plate with three invar rods in a volumetric configuration. This insures additional stability

Absolute frequency stabilization

to atomic/molecular reference line available

Automated

Absolute high-precision automatic wavelength setting option

Auto-Relock function

ensures stable laser operation even in the case of severe environmental disturbances

  Single solid etalon

Simlyfied and robust construction

Absolutely dry

The laser has a reliable integrated shutter for the dye solution during powering on and switching off the circulation system
