289 nm
Q-switch laser 289 nm

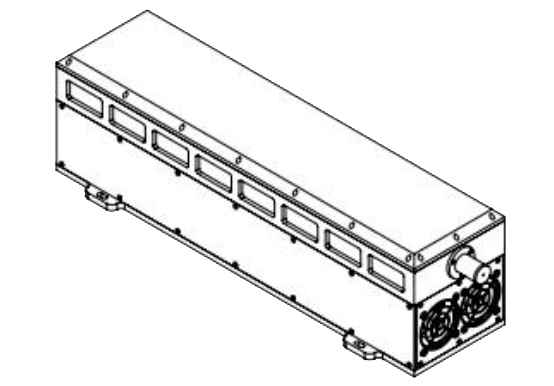

AO-K-289 | q-switched UV solid state laser
All solid state Q-switched UV laser at 289 nm has the features of ultra compact, easy operating, it is widely used in UV curing, micro-electronics, metrology and material processing, laser medical treatment, scientific experiment, etc.
Wavelength: 289 ± 1nm
Operation mode: acousto-optics q-switch
Output power: 1 - 50 mW
Power stability: < 3%, < 5% (rms, 4 hours)
Pulse duration: 10 ± 2 ns
Pulse peak power: 1 ~ 5 µJ
Operation mode: acousto-optics q-switch
Output power: 1 - 50 mW
Power stability: < 3%, < 5% (rms, 4 hours)
Pulse duration: 10 ± 2 ns
Pulse peak power: 1 ~ 5 µJ
Peak power: up to 500 W
Repitition rate: 10 kHz
Beam divergence: < 1 mrad (full angle)
Beam shape: 1,5 x 3 mm²
Beam height: 120 mm
Cooling method: air
Warm-up time: < 10 min
Power supply: AC 220V
Expected lifetime: 10000 hours
Warranty: 1 year
Repitition rate: 10 kHz
Beam divergence: < 1 mrad (full angle)
Beam shape: 1,5 x 3 mm²
Beam height: 120 mm
Cooling method: air
Warm-up time: < 10 min
Power supply: AC 220V
Expected lifetime: 10000 hours
Warranty: 1 year
