438 nm

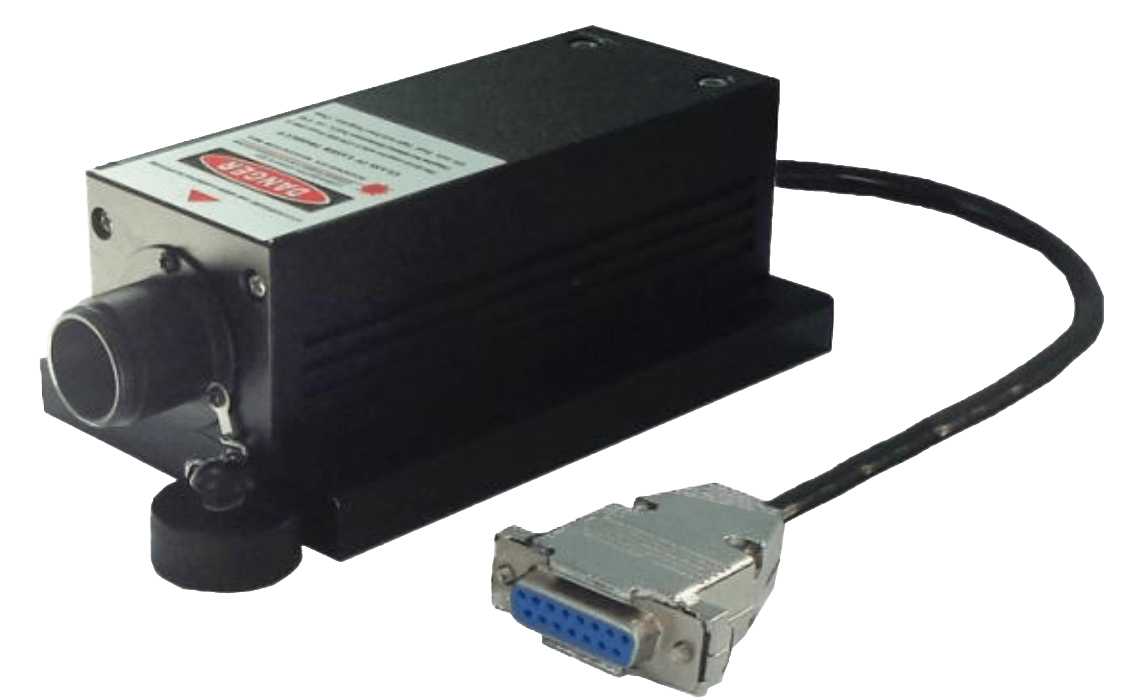

Low noise diode laser at 438 nm
MDL-III-438 / MLL-III-438
Low noise CW diode laser
438 nm UV diode laser. It features low noise, power stability, ultra compact design, long lifetime, cost-effectiveness and easy operation. The laser is used in measurement, communication, spectrum analysis, etc.
Wavelength: 438 ± 3 nm
Operating mode: CW
Output power: 1, 100, ..., 500 mW
Power stability: < 1%, < 2%, < 3%, (< 0.5%)
(rms, 4 hours)
Operating mode: CW
Output power: 1, 100, ..., 500 mW
Power stability: < 1%, < 2%, < 3%, (< 0.5%)
(rms, 4 hours)
transverse mode: Multimode
Noise of amplitude*: < 1% (rms, 10Hz~20MHz)
Beam diameter: ~ 2.5 x 5.2 mm (1/e²)
Beam divergence: < 2.1 x 1.6 mrad
(full angle)
Beam height: 24.8 mm
Operating temperature: 10 ~ 35 °C
Warm-up time: < 5 min
Power supply: AC 85~264 V
Modulation: 1 Hz - 30 kHz
(30 kHz - 100 kHz)
Beam diameter: ~ 2.5 x 5.2 mm (1/e²)
Beam divergence: < 2.1 x 1.6 mrad
(full angle)
Beam height: 24.8 mm
Operating temperature: 10 ~ 35 °C
Warm-up time: < 5 min
Power supply: AC 85~264 V
Modulation: 1 Hz - 30 kHz
(30 kHz - 100 kHz)
Modulation method: TTL or analog
Expected lifetime: 10,000 hours
Warranty: 1 Year
* Model MLL-III-438 only
Warranty: 1 Year
* Model MLL-III-438 only
Fiber coupler for
438 nm laser module
MDL-438(FC)
| 1 ~ 450 mW
Almost all 438 nm laser modules can be coupled with MM or SM fibers with different core diameters. You will find all possible fiber couplings and parameters here.
Fiber coupled
laser system at 438 nm
FC-438 | 1 ~ 450 mW
The FC series
(Fiber Coupling Laser System) includes laser diode, laser resonator, fiber coupling optics, laser power supply, LD current and crystal temperature control in ONE package. Thanks to its compact dimensions and convenient functions, such as power setting, temperature control, LCD/LED display, etc., it is very well suited for pumping, scientific research, industrial and medical applications.
